Workload Security

wasmCloud workload security operates in two complementary layers:

  • The WebAssembly sandbox — enforced by the Wasmtime runtime, which provides strong isolation guarantees for every component by default
  • Kubernetes controls — NetworkPolicy for host pods, and RBAC for the operator and gateway ServiceAccounts

This page covers the sandbox model, allowedHosts, allowedIpNameLookups, raw-socket egress policy, host filesystem access, outbound client identity, same-host local routing, and NetworkPolicy. For RBAC configuration, see Roles and Role Bindings.

The WebAssembly sandbox​

Every wasmCloud component runs inside the Wasmtime WebAssembly runtime, which provides strong, runtime-enforced isolation regardless of what the component code does:

  • Memory isolation — each component instance has its own linear memory. One component cannot read or write another's memory, and cannot access the host process's memory.
  • No implicit system access — components cannot open files, make network connections, read environment variables, or call system APIs unless the host explicitly provides an implementation of the corresponding WASI interface.
  • Capability-based access — a component can only use a capability if it declares the relevant WIT interface import and the host has a matching plugin bound to that interface. Undeclared capabilities are structurally unreachable, not merely blocked at runtime.

In practice this means the security posture of a component is determined by what it imports, what the operator mounts via localResources, and what hostInterfaces are bound to it. A component with no hostInterfaces and no localResources has no access to anything outside its own computation.

tip

Use wash inspect <component.wasm> to see exactly which interfaces a component imports before deploying it.

Restricting outbound HTTP with allowedHosts​

When a component has the wasi:http/outgoing-handler interface bound, it can make outbound HTTP requests. Use allowedHosts to restrict which hosts it may call:

yaml
components:
  - name: http-component
    image: ghcr.io/wasmcloud/components/http-hello-world-rust:0.1.0
    localResources:
      allowedHosts:
        - api.example.com
        - storage.googleapis.com
        - "*.s3.amazonaws.com"

Entries are matched case-insensitively against the request's host (no scheme, no path). A leading wildcard like *.example.com matches any subdomain but not the bare example.com — list both if you need both. When allowedHosts is non-empty, any outbound HTTP request whose host doesn't match an entry is blocked by the host before it leaves the process. Since 2.10.0 the denial reaches the guest as a handleable http-request-denied error rather than a trap, for WASI 0.2 and 0.3 components alike. This is enforced at the wasmCloud level, independently of any Kubernetes NetworkPolicy.

The policy fails closed: if allowedHosts is empty or the field is omitted, all outbound HTTP requests are denied. To allow unrestricted outbound HTTP, set allowedHosts: ["*"] explicitly. (Local development behaves differently: when the field is omitted from .wash/config.yaml, wash dev substitutes the allow-all policy, so dev-loop workloads make outbound HTTP freely.)

Note that * covers HTTP egress only. It opens no wasi:sockets name lookup, and since 2.11.0 wash dev enforces the socket address policy with no flag to relax it, so a dev-loop component that opens a raw socket to a hostname needs an allowedIpNameLookups entry even under an allow-all allowedHosts. Components that only make outbound HTTP are unaffected.

note

allowedHosts controls outbound HTTP calls made via wasi:http/outgoing-handler. It does not restrict network access that may be available through other host interfaces that are explicitly bound to the component.

Allowing DNS name lookups with allowedIpNameLookups​

DNS name resolution via wasi:sockets is denied unless something grants it. Two fields can, since 2.11.0: a name listed in the component's allowedHosts is resolvable on its own, and allowedIpNameLookups covers names beyond those. A component whose lists name neither cannot resolve any hostname and must connect by IP address. Starting in wasmCloud 2.6.1, a component can opt in with a per-component allowlist:

yaml
components:
  - name: http-component
    image: ghcr.io/wasmcloud/components/http-hello-world-rust:0.1.0
    localResources:
      allowedIpNameLookups:
        - api.example.com
        - "*.internal.example.com"

Entries may be exact hostnames, *.suffix wildcards, * (any name), or literal IPs. The policy fails closed: resolution is denied unless a matching entry is present here or in allowedHosts. The restriction is enforced by the wasmCloud host for both WASI 0.2 and 0.3 resolvers, independently of any Kubernetes NetworkPolicy. One asymmetry to know: allowedHosts: ["*"] permits connections but opens no lookup, so a component that connects by name under a wildcard egress policy still needs a name entry.

Name grants on raw sockets​

A raw socket carries only an address, never a hostname, so a name in allowedHosts cannot be checked at connect time the way an HTTP request's Host header can. Since 2.11.0 the host bridges that gap by granting the address a name resolved into: an allowedHosts entry naming a host permits a wasi:sockets connection to an address the component resolved that name into, on the entry's port, for a window after the lookup. The entry permits the lookup itself as well.

For a workload's own raw sockets, an entry carrying a scheme but no port constrains the port only when that scheme has a known URL default (https 443, http 80, ws, wss, ftp); a scheme with no URL default, such as redis://, postgres://, or nats://, leaves the port open. The familiar client defaults for those schemes (redis 6379, postgres 5432, nats 4222) apply to a plugin's own allowedHosts ceiling, where the plugin dials the endpoint itself, not to a workload's sockets.

runtime.hostGroups[].networking.ipNameLookupGrantLifetime (host flag --ip-name-lookup-grant-lifetime, WASH_IP_NAME_LOOKUP_GRANT_LIFETIME) bounds that window. Unset, the default, a resolved address stays connectable for as long as the workload's store remembers the lookup, even after the name has moved off it. Set a lifetime (60s, 5m) where addresses are recycled, as pod IPs are. 0s turns name entries off for sockets entirely, leaving only literal addresses.

The grant is the address, not the server

The lifetime is not a DNS TTL — the resolver does not report one, so the host cannot honor it. And because the grant attaches to the resolved address, two names sharing one address are indistinguishable to the policy: resolving a name that points at another in-cluster service grants that service too, unless --deny-private-ranges screens it.

Check your installed CRDs

The capability shipped in wasmCloud 2.6.0 under the name allowIpNameLookup and was renamed to allowedIpNameLookups in 2.6.1. On a 2.6.0 host, use the old name. The CRDs bundled with the 2.6.x Helm charts predate the field entirely: if your installed Workload/WorkloadDeployment CRDs don't include allowedIpNameLookups under localResources, the Kubernetes API server silently prunes it from applied manifests. The 2.7.0 chart bundles up-to-date CRDs (and upstream CI now checks chart CRDs against the operator's definitions), but note that Helm only installs the crds/ directory on helm install, never on helm upgrade, so clusters upgrading from a 2.6.x chart still need to apply the updated CRDs manually.

Note that allowedIpNameLookups governs the wasi:sockets name-lookup interface (i.e., resolving hostnames for raw TCP/UDP connections). Outbound HTTP through wasi:http/outgoing-handler is resolved by the host's own HTTP client and governed by allowedHosts, so HTTP-only components don't need entries here.

Raw-socket egress policy and connection quotas​

The host consolidates every socket decision into one per-workload policy, backed by connection quotas:

  • Raw-socket egress policy. Raw wasi:sockets connections are evaluated against the workload's allowedHosts and an address policy that screens special ranges (link-local including cloud metadata endpoints, multicast, and documentation ranges; optionally private ranges). The host's --socket-egress flag decides what a violation costs: enforce, the default since 2.11.0, refuses the connection; count records would-deny counters without refusing anything. Use count to size a policy before committing to it. Companion flags: --deny-special-ranges (default on) and --deny-private-ranges (default off; reaching a sibling service on a private address is the ordinary in-cluster case). Since 2.10.0 the policy also screens inbound traffic (listens, accepts, and received datagrams), and host plugins carry their own egress ceiling of the same shape, declared on the plugin's plugins entry. Since 2.11.0 the unspecified addresses 0.0.0.0 and :: resolve to the workload's own virtual loopback rather than being admitted as ordinary destinations.
  • Connection quotas. Each workload gets one connection quota across three surfaces: pooled outbound HTTP/gRPC connections (default 128 per workload; a request over quota waits up to --http-connection-wait, default 5s), raw wasi:sockets connections (default 256; refused immediately rather than waiting, to avoid self-deadlock), and inbound connections (default 256). Per-surface flags (--max-outbound-http-connections-per-workload, --max-outbound-socket-connections-per-workload, --max-inbound-socket-connections-per-workload) and a host-wide ceiling (--max-connections; when unset, derived from the process's file-descriptor limit) tune these.
  • Host ingress ceiling. Since 2.9.0 the host also bounds its own HTTP listener with --max-http-ingress-connections (default: a quarter of the descriptor limit, floor 256). Connections past the ceiling are accepted and immediately closed, so the host stays responsive, and the host raises its soft file-descriptor limit toward the hard limit at startup.
  • Host loopback access. The reserved name host.wasmcloud.internal is the one sanctioned path from a workload to the machine's loopback, gated by the per-component allowedHostLoopbackPorts list and the host-level --allow-host-loopback flag (off by default), a two-key grant. 127.0.0.1 continues to mean the workload's own virtual loopback.

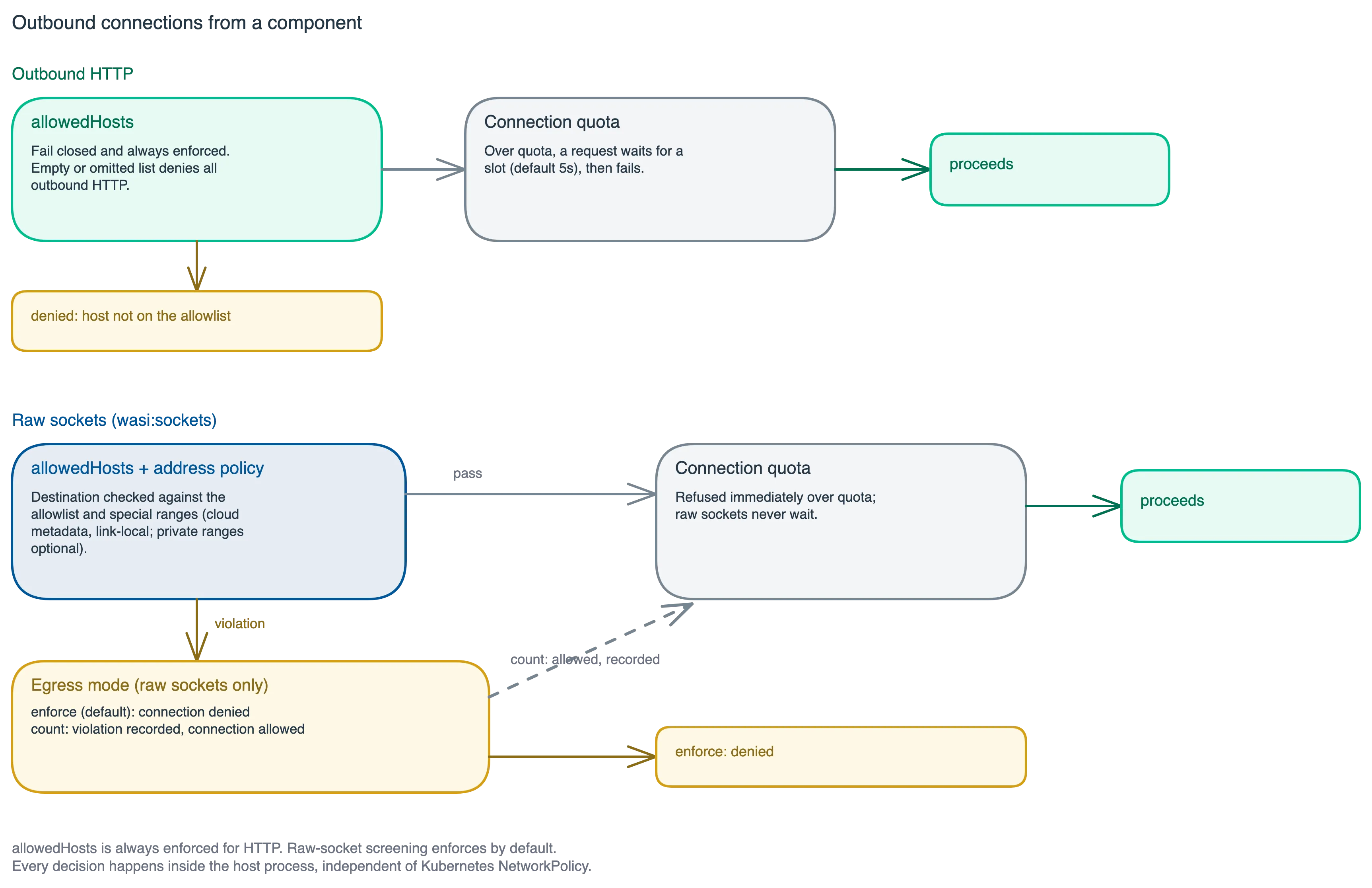

Two decision paths for outbound connections from a component. Outbound HTTP: the allowedHosts check is fail closed and always enforced, then the connection quota, where a request over quota waits for a slot (default 5s) before failing. Raw sockets: the destination is checked against allowedHosts and the address policy; a violation goes through the egress mode gate, where enforce mode (the default) denies the connection while count mode records the violation and allows it; connections over the raw-socket quota are refused immediately

Guest UDP binds are loopback-confined like TCP binds, outbound HTTP connections are pooled per workload with keep-alive (workloads never share a TCP connection, and TLS session resumption is isolated per workload), and outbound HTTPS trust roots are configurable for private-CA environments (--http-client-ca-path, --http-client-trust-roots).

Host filesystem access​

A workload reaches the host's filesystem through a hostPath volume, which the host gates since 2.11.0. A hostPath volume is permitted only when its canonical path lies within a directory the host lists in runtime.hostGroups[].hostPaths.allowed (host flag --allowed-host-path). With no directories listed, no hostPath volume is permitted, so this is a fail-closed grant like the egress lists. Canonical paths are what is judged, so .. segments and symlinks cannot escape an allowed directory.

Some paths stay refused inside an allowed directory. The host reserves every credential and CA file its own flags name, its OCI cache, its config files, its configs:/secrets: catalog sources, and any component-plugin Wasm files, and refuses kernel filesystems (/proc, /sys, /dev) and the scratch root. --reserved-host-path (WASH_RESERVED_HOST_PATHS) adds more.

A host-wide guardrail, not a tenancy boundary

Every workload on the host may mount any directory the host allows. hostPaths.allowed keeps workloads off the host's own secrets and out of the rest of the filesystem; it does not separate workloads from each other. Workloads that must not share a directory belong on different host groups.

Ephemeral (emptyDir-style) volumes live under the scratch root, runtime.hostGroups[].scratchRoot (--scratch-root, WASH_SCRATCH_ROOT), which defaults to wasmcloud-scratch under the system temp directory. A workload's scratch is removed when it stops, and a starting host clears what dead hosts left behind. Under wash dev both settings are derived from the session: the project's declared volumes become the allowed paths, and the scratch root moves under the wash cache directory, so a dev session that mounts /tmp is not refused.

Outbound client identity (mTLS)​

Since 2.10.0 the host can present a client certificate on components' outbound HTTPS when a peer requests one: --http-client-cert-path and --http-client-key-path (PEM, both required together), or runtime.clientIdentity on Kubernetes, which mounts a kubernetes.io/tls Secret.

--http-client-identity-refresh re-reads the pair on an interval for rotation: new connections pick up the new credential, and a failed re-read keeps the current one. The flag is also what turns on expiry checking, and with it expiry is fail-closed: the host refuses to start with an already-expired chain, and a credential that expires while resident stops being presented rather than offered stale, logged at error. Without the flag the pair is read once and never re-validated, so set it (the chart does, at 30s) whenever the identity has an expiry that matters.

The identity is presented to any peer that asks

The identity is host-wide, which on Kubernetes means host-group-wide, since a group's hosts share one configuration. Every workload authenticates as it, so a workload with broad allowedHosts can cause the host to disclose the certificate to an arbitrary endpoint. Pair it with narrow allowedHosts, and keep untrusted workloads on a host group without an identity.

Same-host local routing​

Since 2.10.0, a host started with --http-local-routing (runtime.hostGroups[].http.localBypassRouting) serves a workload's outgoing HTTP in process when the hostname matches a co-located workload's localRoute declaration. Like host loopback, it is a two-key grant: the operator enables the host key, and the target workload declares the names it serves. The caller's allowedHosts is checked before the short-circuit, so local routing never widens egress policy, and localRoute names are never reachable from the network.

The trust model is the operator's to judge. A localRoute claim is not proof of ownership: any workload on the host may claim any hostname, including one a neighbor calls over HTTPS, and receive that traffic in plaintext. Locally routed calls also bypass ingress auth, rate limits, mesh mTLS, and NetworkPolicy. Enable local routing only on host groups whose workloads trust each other.

Kubernetes NetworkPolicy for host pods​

The runtime-operator Helm chart ships default NetworkPolicy resources for the operator, NATS, and each host group pod. These are enabled by default (networkPolicy.enabled: true); set to false to disable them — for example, when a CNI without NetworkPolicy support or a service mesh is managing pod-to-pod traffic. For environments that need to further restrict or extend the policy, apply an additional NetworkPolicy manually; Kubernetes semantics are additive. Note that traffic served by same-host local routing never reaches the pod network, so no NetworkPolicy applies to it.

The example below is a self-contained baseline for teams applying their own policy from scratch (for example, on an install where the chart-shipped policies are disabled).

Host pods carry the labels wasmcloud.com/hostgroup: <group> and wasmcloud.com/name: hostgroup. A baseline policy that allows only the traffic the host pods need looks like this:

yaml
apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: wasmcloud-hostgroup
  namespace: default
spec:
  podSelector:
    matchLabels:
      wasmcloud.com/name: hostgroup
  policyTypes:
    - Ingress
    - Egress
  ingress:
    # Allow the Runtime Gateway to forward HTTP requests to host pods
    - from:
        - podSelector:
            matchLabels:
              wasmcloud.com/name: runtime-gateway
      ports:
        - port: 80
  egress:
    # Allow outbound to NATS for control-plane communication
    - to:
        - podSelector:
            matchLabels:
              wasmcloud.com/name: nats
      ports:
        - port: 4222
    # Allow DNS resolution
    - ports:
        - port: 53
          protocol: UDP
note

The exact pod label selectors depend on your Helm release name and values. Verify the labels on your gateway and NATS pods before applying this policy:

shell
kubectl get pods --show-labels -n <namespace>

If your components make outbound HTTP calls via wasi:http/outgoing-handler, you will also need to add egress rules for ports 80 and 443 to allow those requests to leave the host pod. Combine this with allowedHosts for defense in depth — NetworkPolicy enforces the Kubernetes-level boundary, while allowedHosts enforces the wasmCloud-level boundary.
